GP FGG Series
GP8 FGG HS
Food handling in hygienic environments
Panoramica

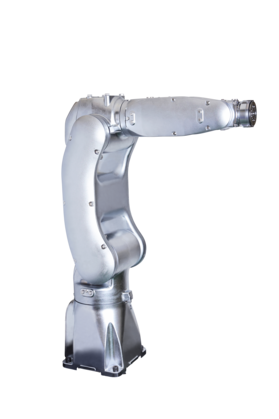

The MOTOMAN GP8 FGG HS (Food Grade Grease Hygienic Surface) is a very fast and precise 6-axis industrial robot with a payload of up to 8 kg especially for the food industry. With a reach of 727 mm and a high repeatability of ± 0.01 mm, it is ideally suited for universal handling or packaging tasks. Its modern, smooth, slim and award-winning industrial design minimizes the space required at the installation site.
The MOTOMAN GP8 FGG HS is designed with the high IP67 protection class as standard, is equipped with food-grade grease for tasks in the food industry and has an easy-to-wash surface with special anti-corrosive coating for use under aggressive environmental conditions.
- Hygienic surface
- Optimized for food handling
- Low interference contours due to optimized design
- Fast and flexible
Dettagli tecnici
- Numero di assi
- 6
- Carico utile
- 8 kg
- Max. Area di lavoro
- 727 mm
- Ripetibilità
- 0.01 mm
- Peso
- 35 kg
- Alimentazione
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Opzioni di montaggio
- x No
- Altre specifiche
- x No
Download
| Nome | |||
|
Flyer Robot GP8 FGG HS
Handling für Lebensmittel in hygienischem Umfeld Data sheet | tedesco |
Data sheet | tedesco | |
|
Flyer Robot GP8 FGG HS
Food Handling in hygienic Environments Data sheet | inglese |
Data sheet | inglese | |
|
Flyer Robot GP8 FGG HS
Manipulation de produits agroalimentaires en environnements hygiéniques Data sheet | francese |
Data sheet | francese | |
| GP8 FGG HS 2D CAD/CAE | | CAD/CAE | ||
| GP8 FGG HS 3D CAD/CAE | | CAD/CAE |
